1400 x 900 Center Waste Shower Tray
1400 x 900 Center Waste Shower Trays
Suitable for Alcove or Corner installations with either a 1400 mm door or 900mm Door
Features of our 1400 x 900 Center Waste Shower Trays
- Made from high-grade white 3.2mm acrylic
- 1400 x 900 center waste rectangle shower tray
- Center waste
- 25mm high upstands – 4 lip shower tray
- 85mm overall height
- Designed for 90mm easy clean wastes
- Fiberglass reinforced acrylic – very strong
- Alcove shower tray Henry Brooks 5,000 and 10,000 cycle tests – click to read
- Ideal for domestic and commercial installations
- Multiple support feet – no foam to crush or compress
4 Lip Shower Tray Seal for this Shower Tray
Recommended For a clean and tidy install,
(Not needed on tile or liner sides of tray).
Buy Seal for Corner install 2500mm long
Buy Seal for Alcove install 1400mm long
$560.00
Hold your mouse over the image to look at the Shower tray.
More images and dimensions lower down the page.
For custom Shower liners Download this Measuring Guide and order form and email to the address on the form.
Further Product information lower down the page
Trade Enquiries Welcome
Click on the left or right arrows to see the next image.
Features of the
1400 x 900 Center Waste Shower Tray
- Sturdy 3.2mm acrylic shower tray is rigid and fully self-supported
- 25 to 28mm wall upstand allows for a watertight seal between tray and liner.
- Tested to drain up to 40 litres per minute yet provide a safe & slip resistant surface
- Shower Tray installation instructions Click here
- Our Shower Trays are Tested to 300KG x 10000 cycles Click here

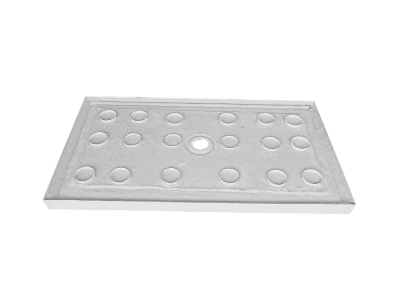

- All our shower trays have numerus self supporting feet across the base of the tray. This gives a firm stable shower tray installation enabling weight to be spread evenly over your floor.
- Our Shower Trays are Tested to 300KG x 10000 cycles Click here
Optional items for your tray
Shower Waste
Easy Clean waste is a perfect for all our Shower trays.
- Easy to install
- Suitable for 90mm waste hole
- Swivel ball outlet, easy of install
- Easily cleaned once installed
- Chrome grate
- More details and buy the waste Here
This Glue pack includes
- Clear Silicone to suit your shower
- Bostik Shower Grip to suit your shower
- Choose the Glue Pack that suits Here

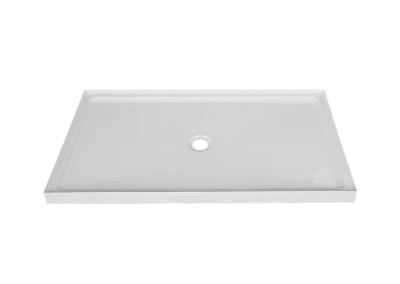

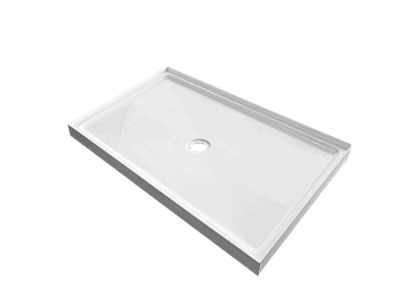

1400 x 900 Center Waste Shower Tray
Suitable for Alcove or Corner installations with either a 1400 mm door or 900mm Door

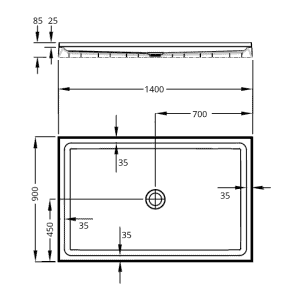

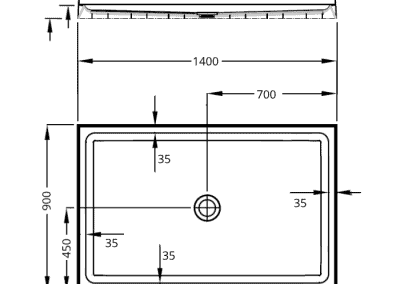

Dimensions of our 1400x900 Center Waste Shower Tray
Features of our 1400 x 900 Center Waste Shower Tray
- Made from high-grade white 3.2mm acrylic
- 1400 x 900 rectangle shower tray
- Center waste
- 25mm high upstands - 4 lip shower tray
- 85mm overall height
- Designed for 90mm easy clean wastes
- Fiberglass reinforced acrylic - very strong
- Alcove shower tray Henry Brooks 5,000 and 10,000 cycle tests - click to read
- Ideal for domestic and commercial installations
- Multiple support feet - no foam to crush or compress
This Center Waste Shower Tray is made from a high-quality, hygienic grade white 3.2mm pure acrylic that is formed with an easy clean surface with fall to the 90mm hole suitable for an easy clean waste. On installation, the wall lining comes down over this upstand and forming a waterproof seal with no silicone is visible inside the shower.

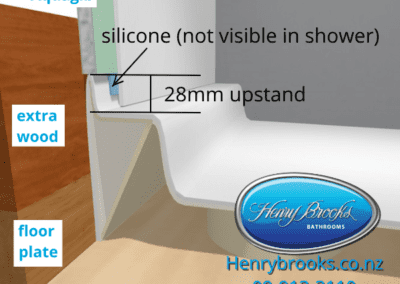

Shower Tray 25mm Upstand Detail - click to read Our extensive experience in renovating bathrooms (since 2000) means we know exactly what is important in shower cubicle design, construction and installation. Our products are approved by Housing New Zealand as being robust and sturdy, surviving a 300 KG weight being dropped 5,000 times onto the shower tray without any structural damage at all. Installation Instructions link at bottom of this page Optional Easy Clean Waste Easy Clean Waste details here A Henry Brooks Easy clean Waste with Chrome lid is available for use with any of our Showers. Essential for installations onto concrete floors. More information is available in our Showers Category.
