Alcove 1000×1000 Corner Waste Shower Trays
Hold your mouse over the image to look at the Shower tray.
More images and dimensions lower down the page.
Alcove 1000×1000 Corner Waste Shower Trays
Alcove 1000×1000 Corner Waste Shower Trays
- Made from high-grade white 3.2mm acrylic
- Suits 3Â walled installations
- 1000mm Square Trays
- Corner waste
- 40mm high upstands – 3 upstands
- Shower tray Tests Henry Brooks 300KG x 10000 cycle test click to read
- 90mm overall height
- Designed for 90mm easy clean wastes
- Fiberglass reinforced acrylic – very strong
- Ideal for Domestic and Commercial installations
- Multiple support feet – no foam to crush or compress
$385.00
For custom Shower liners Download this Measuring Guide and order form and email to the address on the form.
Further Product information lower down the page
Trade Enquiries Welcome
Click on the left or right arrows to see the next image.
Features of the
Alcove 1000×1000 Corner Waste Shower Trays
- Sturdy 3.2mm acrylic shower tray is rigid and fully self-supported
- 40mm wall upstand (Industry Leading) allows for a watertight seal between tray and liner.
- Tested to drain up to 40 litres per minute yet provide a safe & slip resistant surface
- Shower Tray installation instructions Click here
- Our Shower Trays are Tested to 300KG x 10000 cycles Click here
- All our shower trays have numerus self supporting feet across the base of the tray. This gives a firm stable shower tray installation enabling weight to be spread evenly over your floor.
- Our Shower Trays are Tested to 300KG x 10000 cycles Click here
Optional items for your tray
Shower Waste[break]Easy Clean waste is a perfect for all our Shower trays.
- Easy to install
- Suitable for 90mm waste hole
- Swivel ball outlet, easy of install
- Easily cleaned once installed
- Chrome grate
- More details and buy the waste Here
- Clear Silicone to suit your shower
- Bostik Shower Grip to suit your shower
- Choose the Glue Pack that suits Here
Alcove 1000x1000 Corner Waste Shower Trays

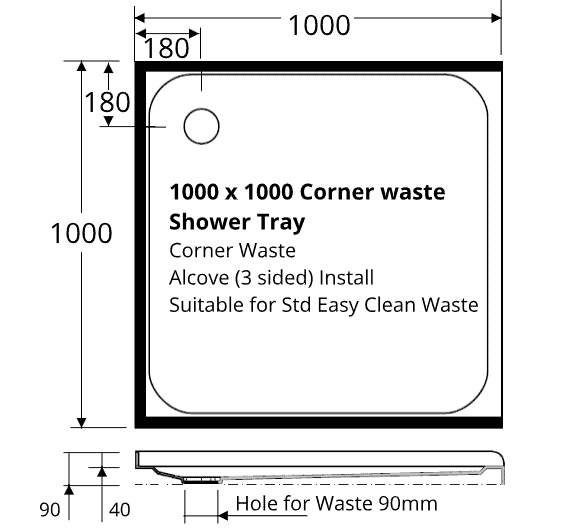

Dimensions of our Alcove 1000x1000 Corner Waste Shower Trays
Features of our Alcove 1000x1000 Corner Waste Shower Trays
- Made from high-grade white 3.2mm acrylic
- Suits walled installations
- 1000mm Square Trays
- Corner waste
- 40mm high upstands - 3 upstand tray
- 90mm overall height
- Designed for 90mm easy clean wastes
- Fiberglass reinforced acrylic - very strong
- Square shower tray Henry Brooks 5000 and 10000 cycle tests - click to read
- Ideal for domestic and commercial installations
- Multiple support feet - no foam to crush or compress
This acrylic tray is made from a high-quality, hygienic grade white 3.2mm pure acrylic that is formed with an easy clean surface with fall to the 90mm hole suitable for an easy clean waste. This shower tray has a 90mm threshold to step over into the tray and also features a 28mm upstand on the sides where your walls will be. On installation, the wall lining comes down over this upstand and forming a waterproof seal with no silicone is visible inside the shower.
Shower Tray 40mm Upstand Detail - click to read Our extensive experience in renovating bathrooms (since 2000) means we know exactly what is important in shower cubicle design, construction and installation. Our products are approved by Housing New Zealand as being robust and sturdy, surviving a 200 KG weight being dropped 5000 times onto the shower tray without any structural damage at all. Installation Instructions link at bottom of this page Optional Easy Clean Waste Easy Clean Waste details here A Henry Brooks easy clean waste with Chrome lid is available for use with any of our Showers. Essential for installations onto concrete floors. More information is available in our Showers Category.
